Name: Espresso Machine Install Kit with Pressure Regulator
Brand: Caffewerks
Price: 78.0 USD
Availability: InStock

Espresso Machine Install Kit with Pressure Regulator

Espresso Machine Install Kit with Pressure Regulator

$78

Shipping calculated at checkout.

This kit includes the tubing and fittings required to connect to most espresso machines.

Kit includes:

6' Beverage Tubing

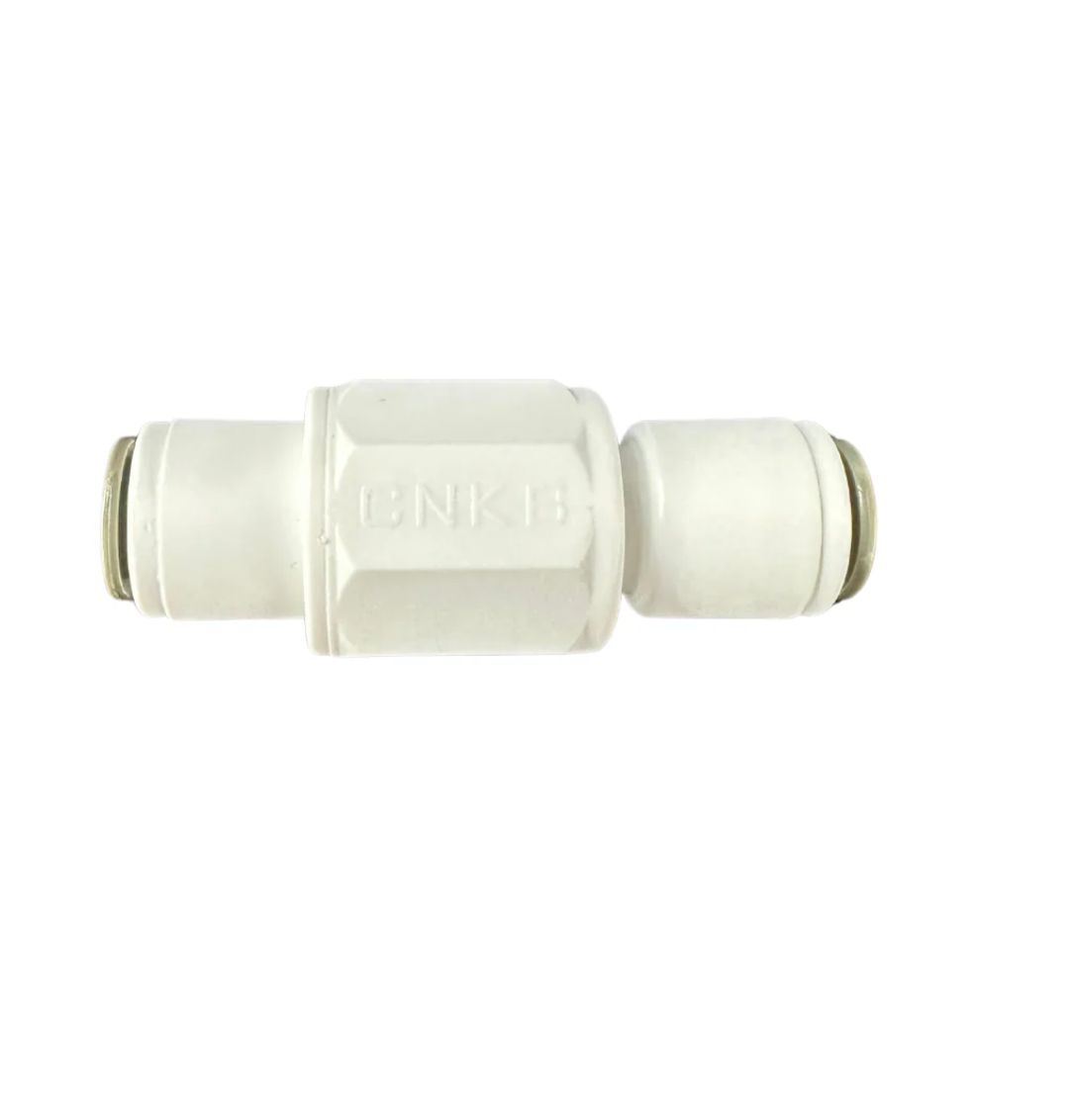

(1) 3/8 Inline Check Valve

(1) 3/8 inline ball valve

(1) 3/8 tube x 3/8 BSSP Adapter Fitting

(1) 3/8 tube x 9/16 UNEF Adapter Fitting

(1) 3/8 tube x 1/4 BSPT Adapter Fitting

(1) 30 PSI pressure Regulator

Optional Omnipure Inline Filter in 6" or 10"

Machine type:

3/8 BSP for Most Standard Espresso machines

9/16 UNEF ( 3/8 compression) for Linea / Micra / La Marzocco Espresso Machines.

1/4 BSPT for Lucca Espresso machines

*This kit comes with all fittings

Need a tubing cutter?

Responsive and effective

Great consults and quick help address and response to urgent solutions!

Exelente.

Alta calidad en piezas y fácil de instalar.

Espresso Machine Install Kit with Pressure Regulator

Awesome

It did everything that was promised. Thank you very much!

Caffewerks knows what they are doing!

I am thrilled and pleased with my product; it was delivered on time, well put together, making easy to set up! I am planning on getting other parts here soon. They are the best for mobile coffee setup!

Espresso Machine Install Kit

$60

Shipping calculated at checkout.

This kit includes the tubing and fittings required to connect to most espresso machines.

Kit includes:

6' Beverage Tubing

(1) 3/8 Inline Check Valve

(1) 3/8 inline ball valve

(1) 3/8 tube x 3/8 BSSP Adapter Fitting

(1) 3/8 tube x 9/16 UNEF Adapter Fitting

(1) 3/8 tube x 1/4 BSPT Adapter Fitting

Optional Omnipure Inline Filter in 6" or 10"

Machine type: 3/8 BSP for Most Standard Espresso machines

9/16 UNEF ( 3/8 compression) for Linea / Micra / La Marzocco Espresso Machines.

1/4 BSPT for Lucca Espresso machines

This kit comes with all fittings

Need a Tubing Cutter?

Find an install video here

Espresso machine install kit

Product work as expected no leaks

Espresso Machine Install Kit

Thoughtful and considerate!!

I am currently building out a coffee cart and hit up Caffewerks for what I thought would be all the necessary parts for the job. I must have over did it for I was contacted by Caffewerks to discuss where I planned on using the separate lines, pumps, etc. for my build and when I explained my layout I was informed that certain pieces were probably unnecessary and why. They refunded me for the unnecessary items and I approved the recommended additional parts and change to my order, but all in all I saved money and got exactly what I needed!! What a thoughtful and considerate way to do business. It’s not just about the transaction and the money but about the customer’s needs.

Thank you, Caffewerks!! I’ll be back.

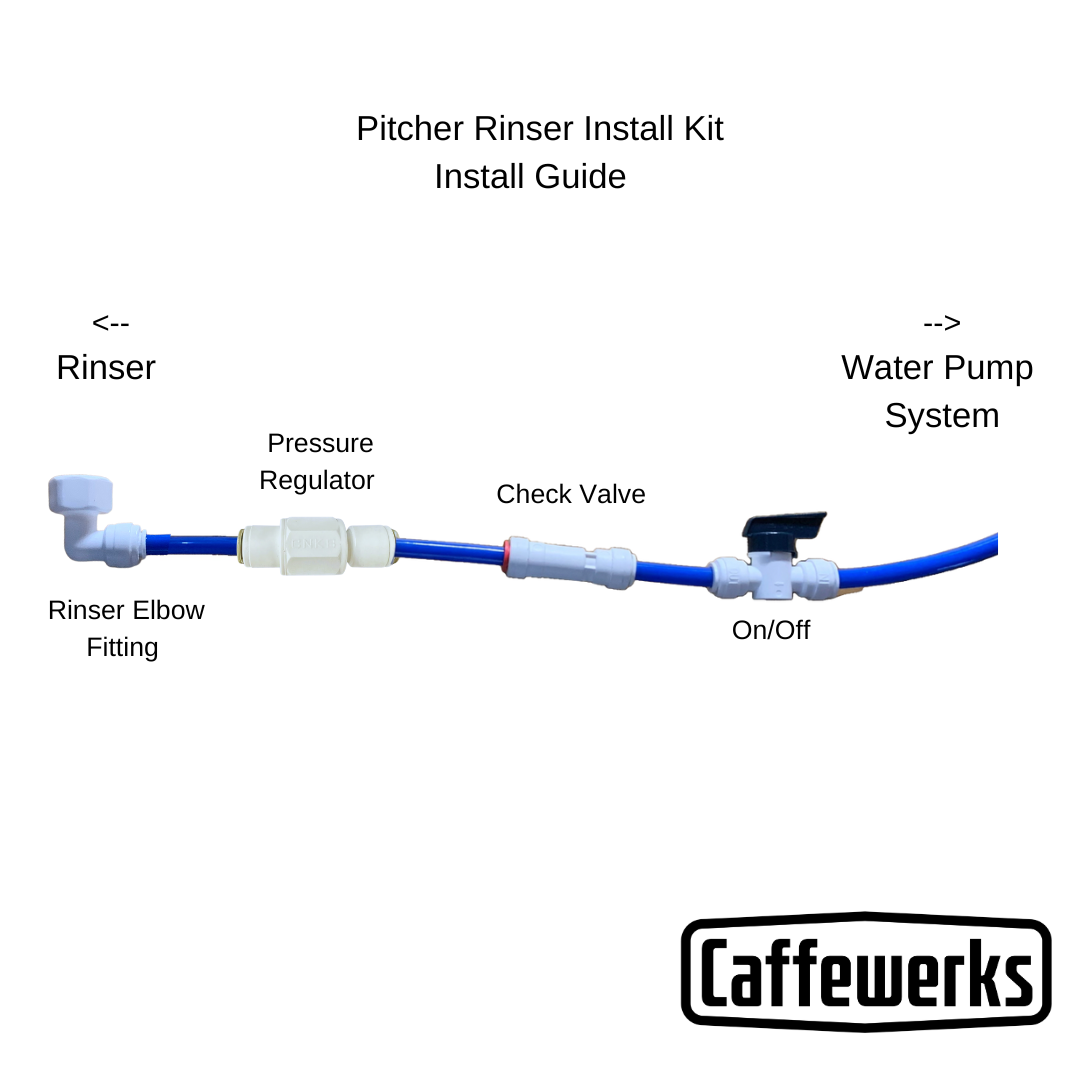

Pitcher Rinser / Sink Water Install Kit

$60

Shipping calculated at checkout.

Our pitcher rinser install kit is designed to work with our water pump systems. Also works great when connecting to standard water service.

kit includes:

6’ 3/8 tubing

(1) 3/8 tube check valve

(1) 3/8 on /off ball valve

(1) Rinser Connection Fitting Push Fit 3/8 tube x 1/2 BSP 90 Angle elbow

(1) 3/8 Tube Union Tee

Need a Tubing Cutter?

Easy install! You guys are brilliant! ✨

Pitcher Rinser Kit

Easy to install. It’s convenient having everything you need in one kit. I also needed to add to my order and the customer service from Caffewerks was fantastic!

Coffee Brewer Install Kit

$60

Shipping calculated at checkout.

This install kit works with our water pump systems allow connection to a batch coffee brewer.

Our kits complete with 6 ft. of 3/8 beverage tubing an inline ball valve, check valve and end connection fitting for your coffee brewer

The end connection fitting provided is a flare to 3/8 tubing fitting. Make sure you select the correct fitting for your particular model.

We know that Curtis Brewers use a 3/8 flare fitting, And Bunn sometimes uses 1/4 or 3/8

Ground control used a 3/8 npt x 3/8 tube fitting

Need a Tubing Cutter?

If you need help deciding, please email us at info@caffewerks.com

Best in the Biz!!!

The Caffewerks team makes it extremely easy to put any kind of system together. The customization is endless, intuitive, and secure with all the install resources they send upon purchase.

Thank you!

Amazing to work with.

Great customer service when things go great and better customer service when they don't. Was sent the wrong size fitting and they corrected immediately. Recommend 10 our 10

3/8 in. O.D. x 1/4 in. I.D. Polyethylene Tube 10'

Polyethylene Tubing // 3/8 in. O.D. x 1/4 in. I.D.

$0.98

Shipping calculated at checkout.

Need an extra length of tube for your Water Pump Build?

This is the tubing used in standard Caffewerks Install Kits

Listing is for 1 foot of tubing, adjust your quantities for the length required

Quantity of 1 = 1 foot of tubing

It is food-safe and great for water pumps and install kits. Get the extra length you need for any and all needs.

3/8 in. O.D. x 1/4 in. I.D. Polyethylene Beverage Tube

Hot water safe to 150F

NSF Certified

Safe for drinking water

Connect Cube // Install Connect Kit // Espresso Machine

Connect Cube // Install Connect Kit // Espresso Machine

$60

Shipping calculated at checkout.

Looking for the Connect Kit to connect your Espresso machine to your new Hydro Connect Cube? You are in the right place!

The Espresso Machine Connect Kit includes 5 ft of NSF approved Surethane flexible tubing with quick connects, and is plumbed with an on/off valve, checked valve, and your needed espresso machine connection.

Connect Cube // Install Connect Kit // Rinser / Sink

Connect Cube // Install Connect Kit // Rinser / Sink

$60

Shipping calculated at checkout.

Looking for the Connect Kit to connect your Pitcher Rinser to your new Hydro Connect Cube? You are in the right place!

The Rinser Connect Kit includes 5 ft of NSF approved Surethane flexible tubing with quick connects, and is plumbed with an on/off valve, checked valve, and a 90 degree 1/2" BSP Rinser fitting for space saving.

Connect Cube // Install Connect Kit // Coffee Brewer

Connect Cube // Install Connect Kit // Coffee Brewer

$60

Shipping calculated at checkout.

Looking for the Connect Kit to connect your Coffee Brewer to your new Hydro Connect Cube? You are in the right place!

The Coffee Brewer Connect Kit includes 5 ft of NSF approved Surethane flexible tubing with quick connects, and is plumbed with an on/off valve, checked valve, and your required coffee brewer connection.

Surethane Tubing // 3/8 in. O.D. x 1/4 in. I.D.

$1.40

Shipping calculated at checkout.

Need an extra length of tubing for your Water Pump Build?

This is the Surethane tubing used in the Caffewerks Connect Cube install Kits.

Listing is for 1 foot of tubing, adjust your quantities for the length required

Quantity of 1 = 1 foot of tubing

It is food-safe and great for water pumps and install kits. Get the extra length you need for any and all needs.

3/8 in. O.D. x 1/4 in. I.D. Surathane Beverage Tube

Hot water safe to 150F

NSF Certified

Safe for drinking water

3/8" x 3/8" Tube x BSPT Connector Acetal

Push Fit 3/8" Tube x 3/8" Male BSP // Most standard espresso machine braided line to 3/8 tubing

$7.95

Shipping calculated at checkout.

This fitting will allow the connection of most standard espresso machines using 3/8 BSP braided steel hose to be connected to 3/8 beverage tubing.

3/8" Tube x 3/8" BSP Connector Acetal

*manufacturer may vary*

Email or fill out question box below with any questions

Push Fit 3/8" Tube X 9/16" Male UNEF - Black 3/8 Compression Adapter // GS3 braided line to 3/8 tubing fitting

$7.95

Shipping calculated at checkout.

If you are installing your La Marzocco GS3 or Linea Mini using 3/8" beverage tubing this fitting will adapt the hose on your espresso machine to 3/8" beverage tubing.

These fittings are designed for fluid applications where risk of chemical attack and/or leak resistance is of concern.

Leak Resistant Dual EPDM O-rings
UV and Chemical Resistant Polypropylene
Certified to NSF/ANSI Standard 58
304 Stainless Steel Gripping Teeth
150 p.s.i. @ 70ºF (10 Bar @ 20ºC)
60 p.s.i. @ 140ºF (4 Bar @ 60ºC)
For use with Plastic or Soft Metal Tubing

Exactly what I needed to hook up my water line to my sink on my coffee cart.

This is the piece you're looking for

If you're looking to hook up a pitcher rinser or sink faucet in a coffee cart, this is the piece you haven't been able to find at any hardware store, plumbing store, etc. It took me forever to realize that this was the one thing I was missing. If you're hooking up a Flojet (or similar), you'll bring the 1/4" tube to the 3/8" tube with another adapter piece, then the 3/8" tube to this so that it connects to the rinser/sink line. Don't hesitate - buy it now so you can finish your project sooner!

Perfect fit for my GS3

This works perfectly with my GS3 plumbed in. Thanks Caffewerks for the quick and easy recommendations.

Works perfectly as intended.

After searching high and low to find an adapter for the water line on a La Marzocco GS3, this was the one part we needed to connect it to a pex water line for using with the Simple Cart System. Additionally, many RO water systems use pex tubing in this size, so going back and forth between portable cart mode and in-line water is a breeze.

Super thankful! So rare to find!

I had such trouble finding a John Guest Push Fit accessory to fit my waterline connected to my La Marzocco Espresso Machine. After numerous emails and many purchases from other companies, I was super thankful for Zachary and his diligence in leading me directly to what I needed. Very pleased!
